Venturi Hopper yog siv rau Drilling Mud Mixing Hopper

Lus piav qhia luv luv:

Jet Mud Mixer yog tsim los ntawm cov av nkos sib xyaw hopper thiab centrifugal twj tso kua mis. Venturi hopper tseem hu ua av nkos. TR khoom tswj yog ib qho exporter ntawm Drilling Mud Mixing Hopper.

Drilling Mud Mixing Hopper yog cov cuab yeej tshwj xeeb siv hauv cov txheej txheem tswj cov khoom. Nws lub hom phiaj yog txhawm rau txhim kho thiab ua kom cov kua dej ntau ntxiv. Qhov no ua rau muaj kev hloov pauv hauv qhov ntom, viscosity, thiab pH qib ntawm cov kua dej drilling. Cov kua dej drilling thiab lwm yam khoom siv drilling yog tsim nyog sib xyaw thiab homogenized. Mud hopper yog ib qho tseem ceeb heev uas cov khoom siv dej drilling thiab cov neeg ua hauj lwm ntxiv yog thawj zaug nkag mus rau hauv cov av nkos, lawv tuaj yeem ua rau nag lossis daus. Lub Jet Mud Mixer tiv thaiv qhov tshwm sim.

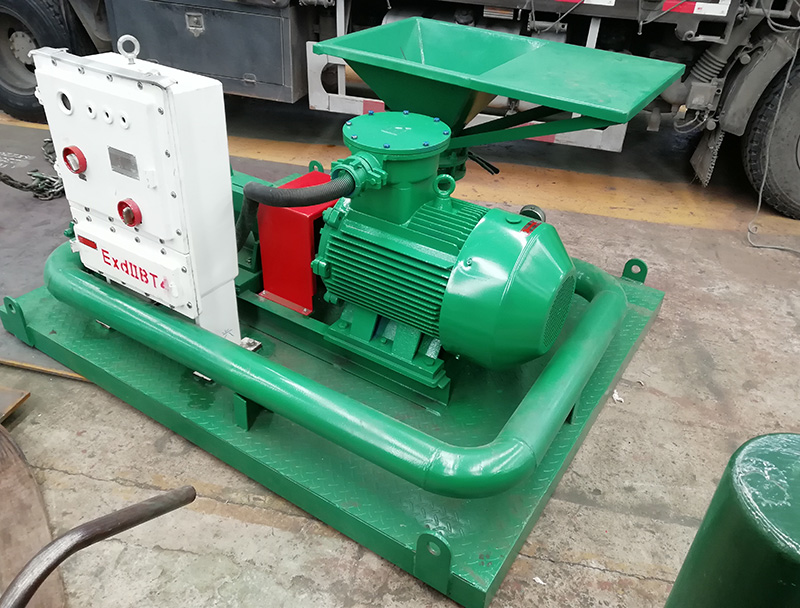

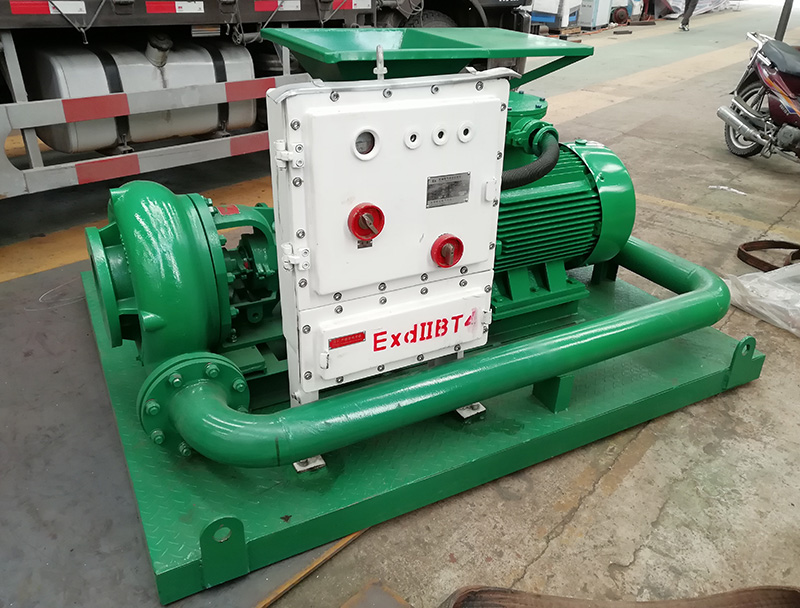

Drilling Mud Mixing Hopper muaj kev nyab xeeb thiab ruaj khov khoom tswj cov cuab yeej uas tuaj yeem txav tau yooj yim yam tsis muaj teeb meem. Nws muaj lub twj tso kua mis centrifugal, venturi hopper, puag, thiab cov kav dej. Lub twj tso kua mis centrifugal yog tsau rau ntawm lub hauv paus thiab ua haujlwm ntawm lub tshuab hluav taws xob. Cov kua yog nkag los ntawm lub impeller. Mud Hopper sib tov cov additives rau hauv lub cev thiab txuas nrog lub twj tso kua mis ntawm cov kav dej. Tag nrho cov no yog tsau nrog lub hauv paus rau kev ua haujlwm du. Jet Mud Mixer eases lub neej thiab lub tshuab hluav taws xob yog qhov zoo tshaj plaws.

Xa email rau peb

Product Detail

Khoom cim npe

Cov ntaub ntawv yooj yim

TRSLH series Jet Mud Mixer yog cov cuab yeej tshwj xeeb los npaj thiab ua kom cov kua dej drilling qhov hnyav los ntawm kev ntxiv thiab sib xyaw bentonite, hloov cov kua dej ntom ntom, hloov cov av nkos, viscosity, thiab lub cev qhuav dej. Cov nyhuv yog qhov sib txuam nrog Shear Pump. Jet Mud Tov Khoom yog ib chav tsev siv ua ke nrog cov khib nyiab tswj system rau roj av grilling thiab kab rov tav directional drilling. Chav tsev muaj xws li ib lub twj tso kua mis xuab zeb, ib lub dav hlau sib xyaw hopper thiab ib lub dav hlau tov khoom uas tau nruab rau hauv lub hauv paus nrog cov yeeb nkab li qub.Tib lub sijhawm, peb tuaj yeem ua Twin-Jet Mud Mixer raws li cov neeg siv khoom xav tau.
Kev sib xyaw hopper yog siv los npaj lossis ua kom cov dej ua kom hnyav dua, hloov qhov ceev, viscosity, dej poob ntawm cov dej drilling. Yog tias muab cov khoom siv dej drilling thiab cov tshuaj ntxiv rau hauv cov av nkos ncaj qha, cov ntaub ntawv thiab cov neeg ua haujlwm tuaj yeem ua rau nag lossis daus, nrog kev dag ntxias, cov ntaub ntawv thiab cov neeg sawv cev tuaj yeem sib xyaw zoo.

Qhov zoo ntawm Drilling Mud Mixing Hopper

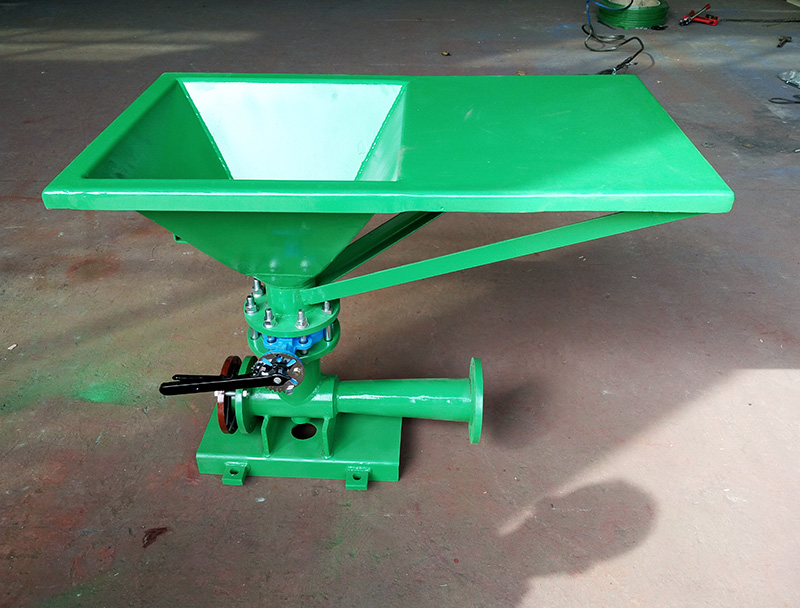

Hoppers tuaj yeem yog Venturi hopper.
Kev tsim qauv zoo tshaj plaws ntawm kev ua haujlwm siab txaus ua rau cov twj tso kua mis ua haujlwm tau zoo dua.
Tshiab style nrog kev ua tau zoo dua nyob rau hauv kev ua haujlwm sib txawv.
Raws li cov dej drilling qhov hnyav thov rau 1500m ~ 9000m zoo drilling.
Hopper thiab twj tso kua mis txuas nrog cov kav dej. Hloov tau yooj yim ntawm hopper thiab twj tso kua mis ntau.
Centrifugal twj tso kua mis yog txhua yam foob hom. Txhim khu kev ntseeg thiab ruaj khov.
Yooj yim rau kev khiav lag luam thiab khaws cia.

Specifications

Qauv	TSW 150-50	TSW 150-40	TSO 150-30	TSO 100
Muaj peev xwm	240 m3/h	180 m3/h	120 m3/h	60 m3/h
Centrifugal twj tso kua mis	TRSB8X6-13J (55KW) TSI	TRSB6X5-12J (45KW) TSI	TRSB5X4-13J (37KW) TSI	TRSB5X4-13J (37KW) TSI
Ua Haujlwm Siab	0.25 ~ 0.40Mpa	0.25 ~ 0.40Mpa	0.25 ~ 0.40Mpa	0.25 ~ 0.40Mpa
Pub Inlet	DN150	DN150	DN150	DN150
Nozzle Dia.	50 hli	42mm ib	35mm ib	35mm ib
Hopper Loj	600 x 600 m	600 X 600 mm	600 X 600 mm	600 X 600 mm
Burden Ceev	≤100kg / min	≤80kg / min	≤ 60kg / min	≤ 60kg / min
Mud Density	≤ 2.8g / cm³	≤ 2.4g / cm³	≤ 2.0g / cm³	≤ 2.0g / cm³
Cov av viscosity	≤120s	≤120s	≤80s	≤80s
Dimension	2200 × 1700 × 1200 hli	2200 × 1700 × 1200 hli	2000 × 1650 × 1100 hli	2000 × 1650 × 1100 hli
Qhov hnyav	1680kg ib	1400 kg	12 80kg	1100 kg

6 nti siab shear tsis tshua muaj siab av nkos hopper
Ua kom tiav nrog 2 nyob rau hauv (tseem 1.5 nti tshwj xeeb qis ntim nozzle, venturi hopper, funnel, sack rooj, 6 nti npauj npaim, valve tag nrho mounted rau hauv paus. 3) inch txiv neej NPT inlet thiab 6 nti weld caj dab qhov hluav taws xob (Lwm yam kawg yog muaj). carbozinc thiab pleev xim rau lub tsho tiv no.

4 nti siab shear qis siab av nkos hopper
Ua kom tiav nrog 1.5 nti nozzle, venturi hopper, funnel, sack rooj, 4 nti npauj npaim, valve tag nrho mounted ntawm lub hauv paus. Lub hop-per nrog 1.5 nti nozzle tuav 5-600 phaus barite ib feeb. Ob (2) nti txiv neej NPT inlet thiab 4 nti weld caj dab qhov hluav taws xob. (Lwm yam kawg yog muaj). Chav tsev primed nrog carbozinc thiab pleev xim rau lub tsho tiv no.

Qauv	Xovxwm ua haujlwm	Inlet Loj	Hopper Txoj kab uas hla	Qhov hnyav
TSI 150-50	0.2 ~ 0.4mPa	DN150	600 × 600 hli	170kg ib
TSI 150-40	0.2 ~ 0.4mPa	DN150	600 × 600 hli	170kg ib
TSI 150-30	0.2 ~ 0.4mPa	DN150	600 × 600 hli	165kg ua
TSO 100	0.2 ~ 0.4mPa	DN100	500 × 500 hli	140kg ib

Jet av nkos tov khoom rau drilling kua khib nyiab tswj

Drilling Mud Mixing Hopper nyob rau hauv cov av nkos system yog siv los tov av nkos. Hauv cov roj thiab roj drilling ua lub luag haujlwm tseem ceeb heev. Lub centrifugal xuab zeb twj tso kua mis nyob rau hauv kab rov tav directional hla thiab lub luag hauj lwm nyob rau hauv cov txheej txheem ntawm slurry shield kuj tsis muaj tsawg.

TR khoom tswj yog ib qho exporter ntawm Drilling Mud Mixing Hopper. Peb yog ib tug exporter ntawm drilling kua venturi hopper. TR solids tswj yog tsim, muag, ntau lawm, kev pabcuam thiab xa khoom ntawm Suav raws li cov chaw tsim khoom. Peb yuav muab cov av nkos zoo thiab cov kev pabcuam zoo tshaj plaws. Koj qhov zoo tshaj plaws dav hlau av nkos tov khoom hopper pib los ntawm TR khib nyiab tswj.
